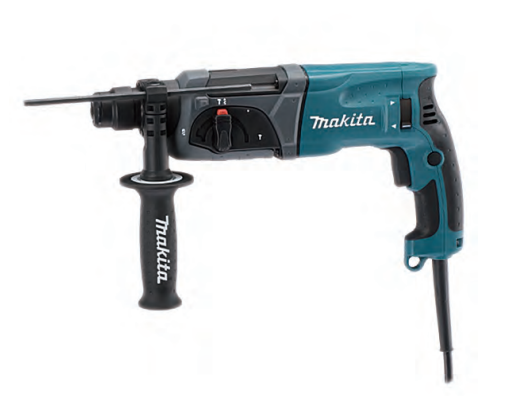

MARTELETE HR2470 MAKITA (VISTA EXPLODIDA)

VISTA EXPLODIDA
HR2470  MAKITA

Item  - Código  -  Descrição

1                      286263-4       TAMPA 35

2                     233940-9         ANEL MOLA 19

3                     417629-9         PROTETOR DO MANDRIL

4                     257241-1         ANEL 21

5                     345187-4         ARRUELA DA GUIA

6                     233916-6         MOLA DE COMPRES CONICA 21-29

7                     921923-8         PARAFUSO M8X120

8                     345280-4         ARRUELA SEXTAVADA

9                     417630-4         BASE DO PUNHO

10                    158057-6        PUNHO 36 COMPL

13                    162245-9        ALAVANCA DE MUD

14                    233459-8        MOLA DE COMPRES 3

15                    419192-8        BOTAO TRAVA

16                    213278-8        ANEL O' RING 17

17                    158216-2        CAIXA DA ENGR COMPL

17A                 213345-9        RETENTOR

18                    266351-3        PARAFUSO AUTO ATARR CT4X36

19                    153290-5        ROLAMENTO DE AGULHA

20                    233929-7        ANEL ELAST 29

21                    267791-8        ARRUELA 31

22                    233401-9        MOLA DE COMPRES 32

23                    227109-5        ENGRENAGEM 51

24                    216022-2        ESFERA DE ACO 7.0

25                    158574-6        FIXADOR DE FERRAM

C10                213344-1         SELO DO ÓLEO 9

26                    267229-3        ARRUELA LISA 28

27                    331769-8        BUCHA 9

28                    324669-9        EIXO DE IMPACTO

29                    324402-9        ANEL 10

30                    421955-0        ANEL 13 DO COXIN

31                    324216-6        CAIXA DO ANEL O' RING

32                    213073-6        ANEL O' RING 9

33                    233917-4        ANEL MOLA 28

34                    324733-6        GOLPEADOR

35                    213227-5        ANEL O' RING 16

36                    318132-2        CILINDRO DO PISTAO

37                    267104-3        ARRUELA LISA 12

38                    324215-8        ARTICULACAO DO PISTAO

39                    267104-3        ARRUELA LISA 12

40                    213727-5        ANEL O RING 63

41                    211012-0        ROLAMENTO DE ESFERA 606ZZ

42                    961003-8        ANEL RETENTOR S-7

43                    233343-7        MOLA DE COMPRES 7

44                    331768-0        CAME

45                    324668-1        EIXO DO CAME

46                    219014-0        MANCAL

47                    226656-3        ENGRENAGEM HELICOIDAL 26

48                    266273-7        PARAFUSO ALLEN M4X12

49                    345179-3        RETENTOR DO ROLAM

50                    267234-0        ARRUELA LISA 8

51                    211032-4        ROLAMENTO DE ESFERA 608ZZMC3E

52                    324212-4        ANEL 8

53                    961011-9        ANEL TRAVA RS-4

54                    233342-9        MOLA DE COMPRES 6

55                    345363-0        PLACA DE MUD

56                    158215-4        CAIXA DO ROLAM COMPL

57                    443126-9        SUPORTE

58                    213407-3        ANEL O' RING 26 P/4100NHK/4200H/5806H

           59                    213077-8        VEDADOR DO OLEO 10

60                    210059-1        ROLAMENTO DE ESFERA 6000DDW

61                    267213-8        ARRUELA LISA 10

62                    240092-9        VENTOINHA 64

63                    515286-8        ROTOR COMPL - 127V

63                    515288-4        ROTOR COMPL - 220V

64                    681670-0        ARRUELA DE ISOL

65                    210023-2        ROLAMENTO DE ESFERA 627T1XDDWC3E

66                    267804-5        ARRUELA ONDULADA 15

67                    266334-3        PARAFUSO AUTO ATARRAXANTE PT4X60

68                    344871-8        RETENTOR

69                    419716-0        GUIA DA VENTOINHA

70                    626576-5        ESTATOR - 127V

70                    626578-1        ESTATOR - 220V

71                    419731-4        CAIXA DO MOTOR COMPL

72                    863538-4        ETIQUETA DE IDENT HR2470

73                    195001-2        ESCOVA DE CARVAO CB-325

74                    638500-6        GUIA DA ESC DE CARVAO

C10               B90005-9         FIO CONDUTOR PRETO

C20               B90006-7         FIO CONDUTOR BRANCO

75                    650589-4        INTERRUPTOR C3VA-2L

76                    814963-2        ETIQUETA SERIAL HR2470

77                    682559-5        PROTETOR DO FIO 8

78                    696304-2        CABO ELET 1.0-2-2.0

78                    696349-0        CABO ELET 1.0-2-15.0

79                    687260-7        PRENDEDOR DO FIO

80                    266324-6        PARAFUSO AUTO ATARRAXANTE 4X22

82                    419717-8        TAMPA DO PUNHO

83                    266324-6        PARAFUSO AUTO ATARRAXANTE 4X22

84                    266324-6        PARAFUSO AUTO ATARRAXANTE 4X22

85                    961017-7        ANEL TRAVA E-3

86                    417796-0        BASE DA GUIA

87                    233344-5        MOLA DE COMPRES 4

88                    266374-1        PARAFUSO M4X25

89                    163430-7        PLACA DE APERTO COMPL

90                    227179-4        ENGRENAGEM 10

91                    941102-2        ARRUELA LISA 5

94                    122881-3        FIXADOR DA FERR. COMPL.

A01                 324219-0        LIMITADOR DE PROFUNDIDADE

A02                 824799-1        MALETA PLAST

A03                 805439-0        ETIQUETA DA MALETA HR2470

806109-4        ETIQUETA DA MALETA HR2470X

A04                 122573-4        ADAPTADOR DE MANDRIL

A05                 192892-2        CHAVE DO MANDRIL

A06                 122823-7        CHAVE DO MANDRIL COMPL
